Nema 23 Closed Loop Stepper Motor 900mN.m 12V IRS57E

Name: Nema 23 Closed Loop Stepper Motor 900mNm 12V IRS57E
Brand: Casun
Price: 35 USD

Quality Nema 23 Closed Loop Stepper Motor 900mN.m 12V IRS57E for sale

Brand Name : Casun

Model Number : 57SHD4101-29PH-IRS57E

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 5PC

Price : $35~$37

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 10000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

Holding Torque : 900 mN.m

Voltage : 12V

Current : 1.0 A

Body Length : 45mm

Weight : 0.6 kg

Phase Resistance : 12 ohm ±10% （At 20℃）

Shaft Length : 28 mm

Phase : 2

Insulation Class : Class B

Contact Now

Casun Motor Nema 23 Stepper Motor IRS57E Closed Loop Stepper Motor

The Casun Nema 23 Closed Loop Stepper Motor (Model: IRS57E) delivers industrial-grade precision and reliability for demanding automation applications. Combining 900mN.m high torque with 12V low-voltage operation, this motor integrates encoder-based closed-loop control to eliminate step loss and ensure consistent performance in CNC, robotics, and high-speed positioning systems.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Nema 23 Closed Loop Stepper Motor 900mN.m 12V IRS57E

Motor Specifications

Step Angle	1.8°
Frame Size	45 mm
Number of Phase	2 Phase
Rated Current	1.0 Amp
Holding Torque	900 mN.m
Resistance	12 ohm
Inductance	28 mH
Rotor Inertia	155 g.cm²
Motor Weight	0.6 kg
Connection	Bipolar

Operating Specifications

Motor Operating Conditions

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder Specifications

Voltage	5V
Output	A + A - B + B - Z + Z -

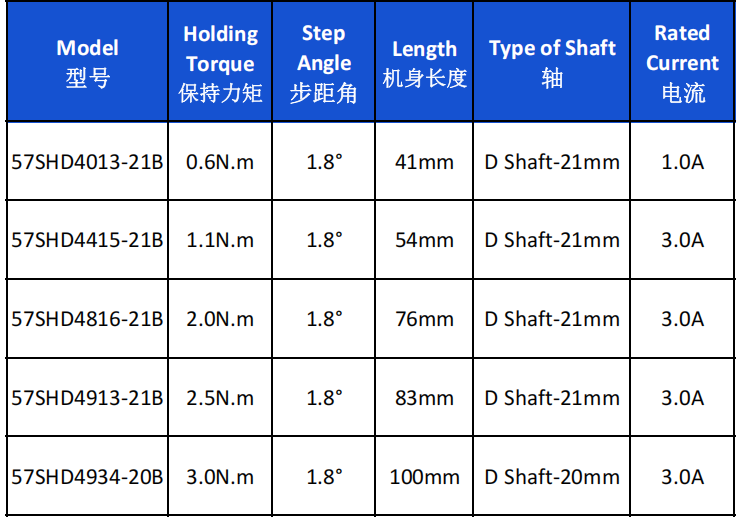

Submodels

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Get a Quote
